ADF Business Components can be exposed as SOAP Services. Application Module provides Service Interfaces as a way to define operations for the services to be exposed. Custom methods written in AMImpl class can also be exposed as operation of web services.
But one of the limitation is that there is restriction on return types from the services exposed as service interface from Application Module.
In this post we will see how easily we can develop a web service using ADF BC Service Interface and can tweak/use one of the given returnType List<ViewRowImpl> to return list of complex type object.
Use case here is to create an operation in ApplicationModuleImpl class to return List of Object consiting of three variables - DepartmentName,ManagerId,IsManagerFlag and expose the operation as ADF BC Service Interface SOAP Service. (Jdeveloper 11.1.1.7)
So Lets get started
Created a simple ADF Web Application using HR Schema and created DepartmentsEO , VO and AM and there respective Java Classes.
Create a Programmatic VO - WSResultPVO which will be returned from the operation of the WebService.
Generate Necessary VOImpl and RowImp classes and set datatypes for the variables.
Remember to make these variables set AlwaysUpdatable as below.
On Next screen just shuttle the method which we need to expose and which is there in AMImpl class.
Do next and finish. Below will be added to Service Interface.
But one of the limitation is that there is restriction on return types from the services exposed as service interface from Application Module.
In this post we will see how easily we can develop a web service using ADF BC Service Interface and can tweak/use one of the given returnType List<ViewRowImpl> to return list of complex type object.
Use case here is to create an operation in ApplicationModuleImpl class to return List of Object consiting of three variables - DepartmentName,ManagerId,IsManagerFlag and expose the operation as ADF BC Service Interface SOAP Service. (Jdeveloper 11.1.1.7)
So Lets get started
Created a simple ADF Web Application using HR Schema and created DepartmentsEO , VO and AM and there respective Java Classes.
Create a Programmatic VO - WSResultPVO which will be returned from the operation of the WebService.
Now Add three variables in the PVO. DepartmentName,ManagerId and IsManagerFlag.
Generate Necessary VOImpl and RowImp classes and set datatypes for the variables.
Remember to make these variables set AlwaysUpdatable as below.
Do a next and finish.
Now write a method in AMImpl class which has a code below. This method is an operation of the Web Service which will return the List of Complex type.
As clear from the code, the rows of WSResultPVO is being set programmatically. DepartmentsVO is iterated and value of DepartmentName and ManagerId is fetched and set into the rows of WSResultPVO. IsManagerFlag is being set Y here which can be changed based on any logic in real time use cases.
At last the WSResultPVO row is added to the List - returnList which is being returned by the operation method.
We are all done with code part. Now lets quickly create service interface and expose the web service.
Go to Service Interface tab of AM. Click on Green Add Icon.
Here you can define the service name. We will go with default for this example.
On Next screen just shuttle the method which we need to expose and which is there in AMImpl class.
We need to define what will be the return type from the operation. So expand the shuttled method and click java.util.List and select WSResultPVO from below as shown below.
Do next and finish. Below will be added to Service Interface.
Thats it we are done now. Just Run the newly generated serviceImpl class from serviceInterface.

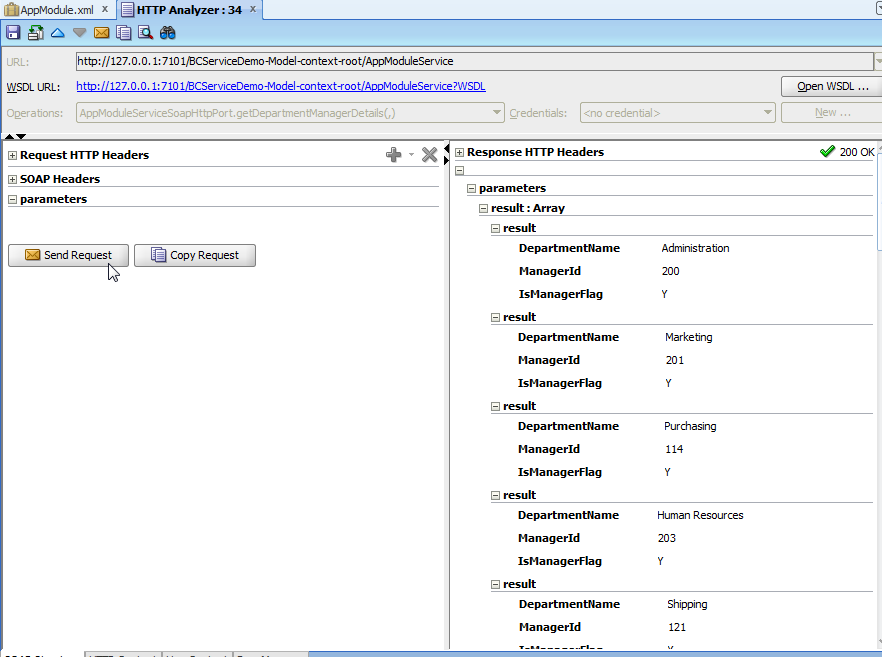

After running, there will be link of the exposed service and one can test it. Just click the operation and below shown will be the results.
So by using ViewRowImpl, we can return List of complex type object which can carter requirement of having complex type returned from the service.
